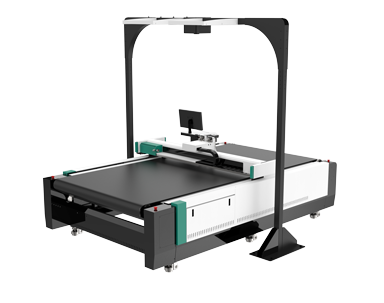

Leather cutting machine

  • ● Use industrial vision systems to quickly scan leather and automatically identify contours and flaws

    ● The discharge speed is increased by more than five times, and the material utilization rate is increased by more than 10%

    ● Unique multi-partition technology, the adsorption force is increased by more than 5 times

    ● AOL has a variety of tool options, cutting and punching marks at one time

    ● According to the classification of leather materials, it supports partition classification, directional nesting and cutting, and supports a variety of nesting rules.

Machine advantages

  • Unique multi-partition technology, adsorption capacity increased by more than 5 times.

  • Super nesting master software, material utilization rate increased by more than 10%.

  • Independent research and development of industrial vision system, to achieve special-shaped printing material cutting

  • Taiwan linear guide rail transmission system is selected, and the accuracy ±0.1mm

  • With the Japanese Panasonic servo system, the production efficiency has been increased by more than four times

  • Differentiate the grades according to the leather, support division and classification multifarious nesting cutting.

  • Quick tool exchange system for easy cutting of a wide range of hardware and soft materials

  • More than 500,000 labor and raw materials are saved every year

  • Selected industrial vision system, quickly scan of leather, automatic identification of shapes and defects.

  • This model has won 8 technical patents at home and abroad

Machine parameters
  • Model
    AOL
  • Worktable
    1600x2500mm / 1800x2500mm / 2100x2500mm / Custom made
  • Positioning accuracy
    ±0.01mm
  • Cutting speed
    0-1000mm/s(according to different cutting materials)
  • Safety device
    Four corners emergency stop, anti-collision safety device using infrared induction, safe and reliable
  • Supporting documents
    AI、PLT、DXF、PDF、 PCE、XMLAI、PLT、DXF、PDF、 PCE、XML
  • Drive system
    Servo motor, linear guide rail, etc
  • cutting material
    leather, PU skin, cow leather, lmitation leather, artificial leather, velvet skin, microfiber leather, composite skin, synthetic leather, suede patent leather, crocodile skin, and so on.
Machine Parameters
Energy efficiency comparison
  • Cutting speed
  • Cutting accuracy
  • Material utilization
  • Cutting effect
  • Cutting cost

Automatic cutting and automatic defect identification

High precision, high efficiency, time and labor saving, automatic printing recognition
2000mm/s

Radium cutting speed

400mm/s

Manual cutting speed

Cutting speed

High precision edge finding cutting

High precision, high efficiency, time-saving and labor-saving, and improve the utilization rate of materials
±0.1mm

Radium cutting speed

±0.4mm

Manual cutting speed

Cutting accuracy

Material utilization

Automatically identify defects, reduce scrap rate and save time and effort
2000mm/s

Cutting efficiency of Austrian radium machine

400mm/s

Manual cutting efficiency

Material utilization
Manual cutting effect
Manual cutting effect
Cutting effect of equipment
Cutting effect of equipment
vs

Cutting cost

High precision, high efficiency, time and labor saving, bid farewell to the difficulty of recruitment
11H/power consumption

Cutting cost of Austrian radium machine

280Yuan / day

Manual cutting cost

Cutting cost
Cutting case
Leather cutting
Suede cutting
Synthetic leather cutting
Artificial leather cutting and cutting
  • Leather cutting
    Tool exchange system, suitable for cutting more materials
  • Suede cutting
    One button special-shaped cutting, suitable for cutting more materials
  • Synthetic leather cutting
    Automatically identify defects, saving time, labor and materials
  • Artificial leather cutting and cutting
    One click Import special-shaped cutting to improve production efficiency

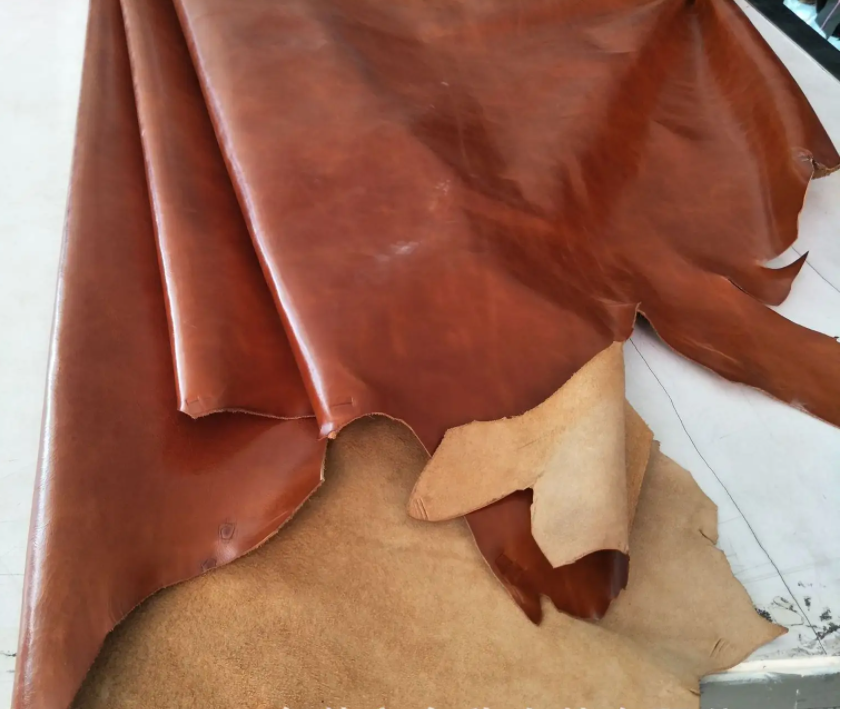

Leather cutting
Leather cutting
Tool exchange system, suitable for cutting more materials

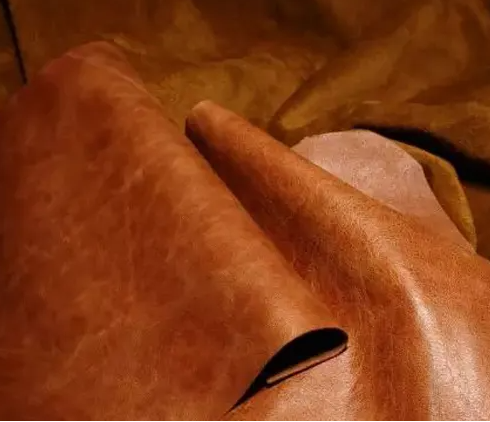

Suede cutting
Suede cutting
One button special-shaped cutting, suitable for cutting more materials

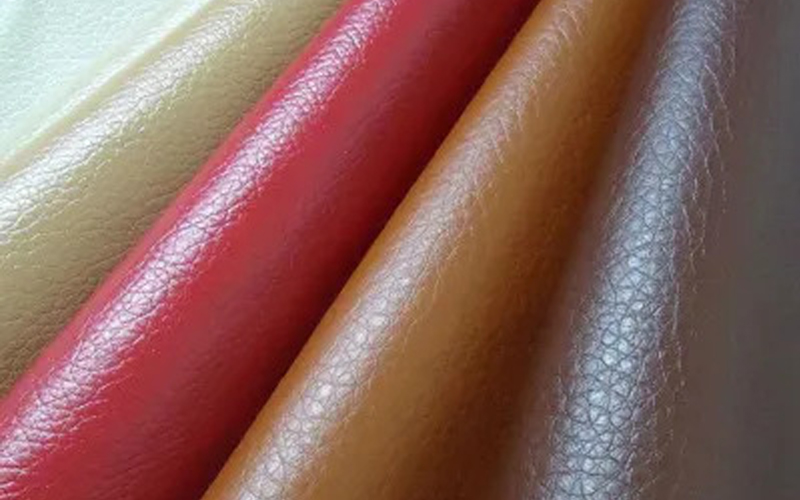

Synthetic leather cutting
Synthetic leather cutting
Automatically identify defects, saving time, labor and materials

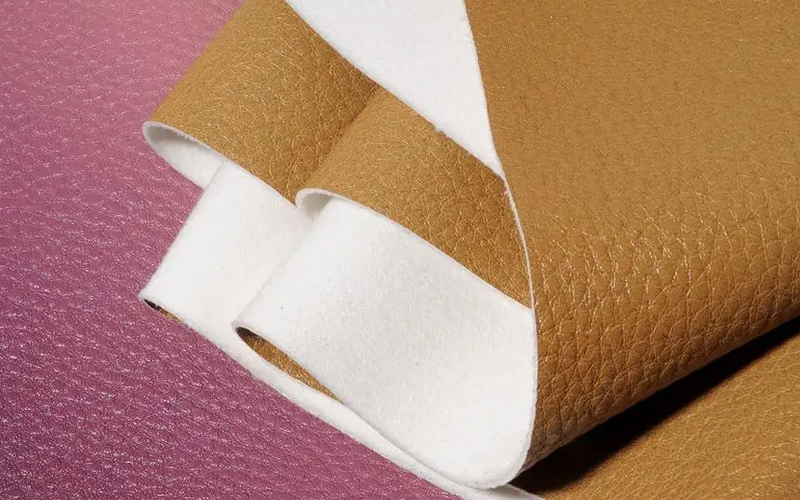

Artificial leather cutting and cutting
Artificial leather cutting and cutting
One click Import special-shaped cutting to improve production efficiency
Tool introduction

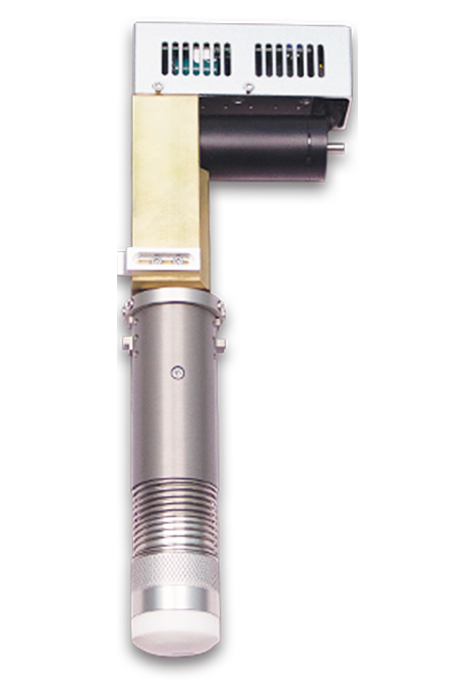

  • Oscillating Knife Tool

    Oscillating Knife Tool

  • Circular knife

    Circular knife

  • Pneumatic knife

    Pneumatic knife

Oscillating Knife Tool
Oscillating Knife Tool
  • The Electrical Oscillating Tool is super suitable for cutting the material of medium density.Coordinated with various kinds of blades, applied for cutting different materials
  • Applicable industries: Corrugated, Cardboard, Carpet, Foam board, Honeycomb board, Car Mat, Seat Cover, KT board, Gray board, Composite Materials, Leather, Fabric, etc

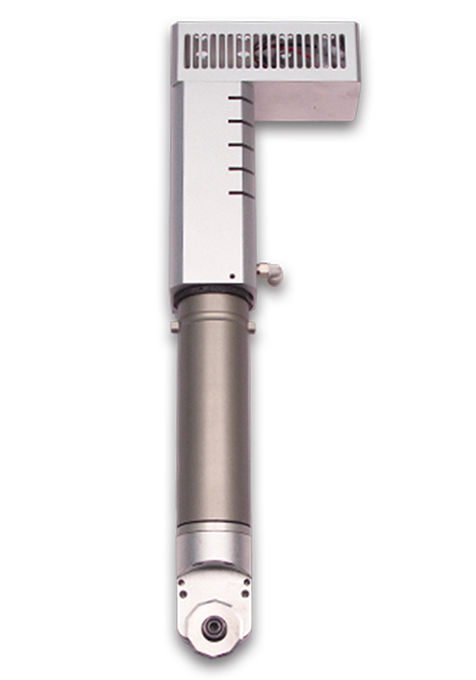

Circular knife
Circular knife

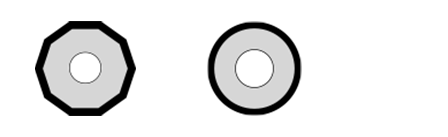

  • Circular knife puts the materials by the high-speed rotating blades driven by the servo motor.The tool can be installed with circular blades and decagonal blades .etc which are especially suitable for cutting woven materials.
  • Applicable industries: Leather, Textiles, Fabric, No-woven Fabric, Fur, Multi-layer, Carpet, Sporting Goods and other industries

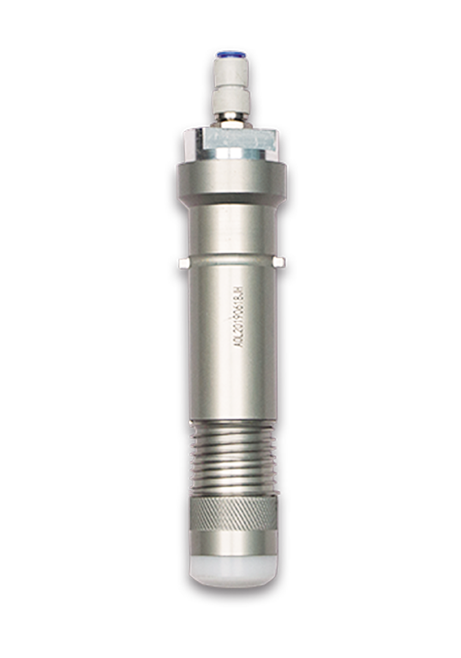

Pneumatic knife
Pneumatic knife
  • Driven by compressed air,Pneumatic Knife Tool with 6mm stroke, is especially for cutting hard and compact materials. Equipped with different kinds of blades,it can make different process effect.The tool can cut the material up to 110mm by using specialized blades
  • Applicable industries: Rubber Board , PTFE , Graphite Board, Asbestos Board, Asbestos Free Board, Fluorine Rubber Board, Sound Insulation, etc
About service
Three years warranty
Three years warranty
Return without reason for seven days
Return without reason for seven days
Lifetime free upgrade
Lifetime free upgrade
Lifelong free service
Lifelong free service
