Medical materials cutting machine

  • ● Special food grade rubber work surface, aseptic cutting

    ● Tool exchange system, suitable for more material cutting

    ● The whole machine anti-static system protects the safety of personnel

    ● Independent research and development system, general workers 2 hours skilled on the job

Cutting machine for medical materials

  • Independent research and development of software one-click import, general workers 2 hours skilled on the job

  • Super nesting master software, material utilization rate of more than 90%.

  • Taiwan linear guide rail transmission system is selected, and the accuracy ±0.1mm

  • With the Japanese Panasonic servo system, the production efficiency has been increased by more than four times

  • Automatic cutting, save time and effort

  • Food grade silicone worktop, clean and sterile

  • Quick tool exchange system for easy cutting of a wide range of hardware and soft materials

  • More than 500,000 labor and raw materials are saved every year

  • Full range of products electrical imports

  • This model has won 15 technical patents at home and abroad

Machine parameters
  • Model
    AOL-1625PAS / AOL-1825PAS /AOL-2125PAS (Accept customization)
  • Worktable
    1600x2500mm / 1800x2500mm / 2100x2500mm / Custom made
  • Positioning accuracy
    ±0.01mm
  • Cutting speed
    200-2000mm/s
  • Feeding mode
    Automatic feeding
  • Safety device
    Infrared sensing, safe and reliable
  • Supporting documents
    AI, PLT, DXF, CDR, etc
  • Drive system
    Panasonic servo motor, linear linear guide rail, lead screw, etc
  • Optional function
    Large camera, projector, automatic knife setting, etc
  • Material fixing method
    Zoned vacuum adsorption
Machine Parameters
Energy consumption comparison
  • Cutting speed
  • Cutting accuracy
  • Material utilization
  • Cutting effect
  • Cutting cost

Automatic operating system aseptic cutting

High precision, high efficiency, time and labor saving, food grade silica gel worktable
2000mm/s

Radium cutting speed

400mm/s

Manual cutting speed

Cutting speed

Fully automatic cutting and one key special-shaped cutting

High precision, high efficiency, time-saving and labor-saving, and improve the utilization rate of materials
±0.1mm

Cutting accuracy of Austrian radium machine

±0.4mm

Manual cutting accuracy

Cutting accuracy

Material utilization

Automatic cutting abnormity, high precision, fast speed, time and material saving
90%

Cutting efficiency of Austrian radium machine

60%

Manual cutting efficiency

Material utilization

Cutting effect

High precision, high efficiency, time and labor saving

Cutting cost

High precision, high efficiency, time and labor saving, bid farewell to the difficulty of recruitment
11KWh / h power consumption

Yuan / day aoradium machine cutting cost

300Yuan / day

Manual cutting cost

Cutting cost
Cutting case
Blood sucking cotton cutting
Medical film cutting and cutting
Cutting of gelatin sponge
Non woven cutting
  • Blood sucking cotton cutting
    Customizable food grade cutting table, aseptic cutting
  • Medical film cutting and cutting
    Special material cutting can be realized to maximize the use of materials and save labor costs
  • Cutting of gelatin sponge
    Has a complete innovation solution offering a wide range of innovative systems for sample creation and mass production
  • Non woven cutting
    Excellent cutting performance, low operating costs and optimized workflow ensure a fast return on investment

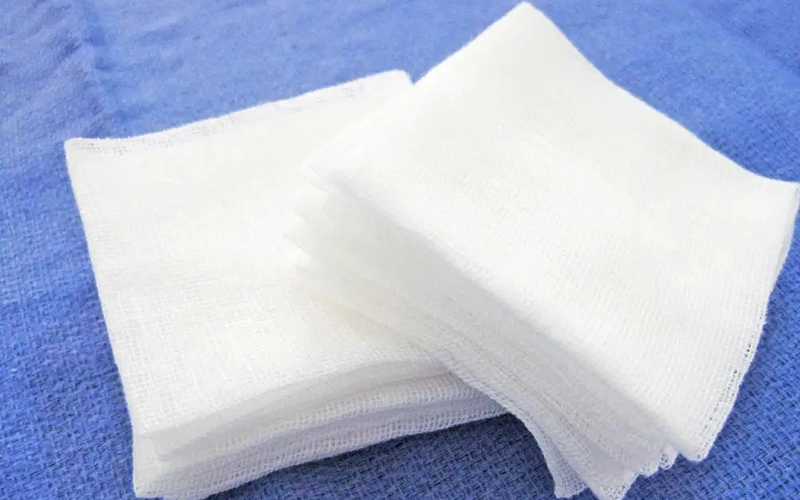

Blood sucking cotton cutting
Blood sucking cotton cutting
Customizable food grade cutting table, aseptic cutting
Medical film cutting and cutting
Medical film cutting and cutting
Special material cutting can be realized to maximize the use of materials and save labor costs

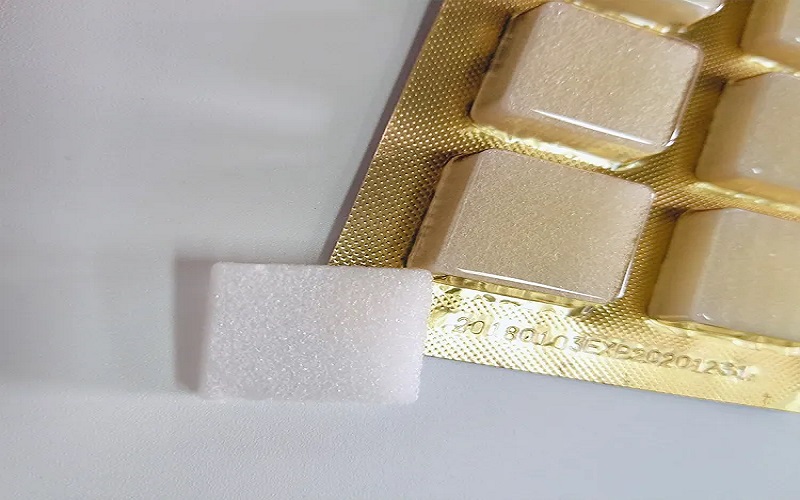

Cutting of gelatin sponge
Cutting of gelatin sponge
Has a complete innovation solution offering a wide range of innovative systems for sample creation and mass production
Non woven cutting
Non woven cutting
Excellent cutting performance, low operating costs and optimized workflow ensure a fast return on investment
Tool introduction
  • Oscillating Knife Tool

    Oscillating Knife Tool

  • Circular knife

    Circular knife

  • Drag knife

    Drag knife

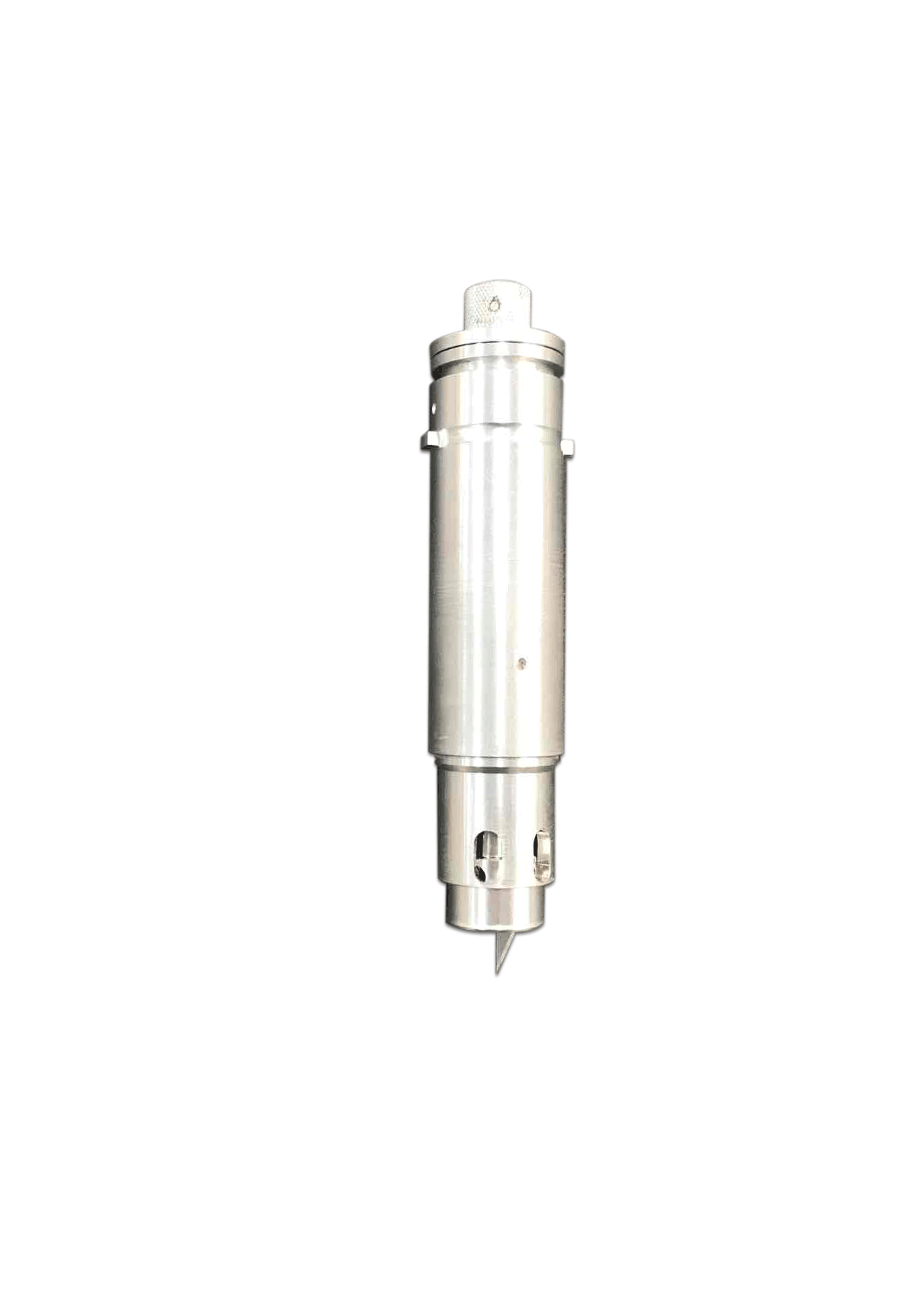

Oscillating Knife Tool
Oscillating Knife Tool
  • The Electrical Oscillating Tool is super suitable for cutting the material of medium density.Coordinated with various kinds of blades, applied for cutting different materials
  • Applicable industries: Corrugated, Cardboard, Carpet, Foam board, Honeycomb board, Car Mat, Seat Cover, KT board, Gray board, Composite Materials, Leather, Fabric, etc
Circular knife
Circular knife

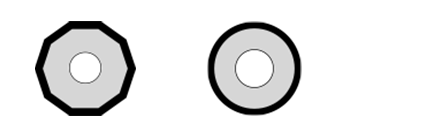

  • Circular knife puts the materials by the high-speed rotating blades driven by the servo motor.The tool can be installed with circular blades and decagonal blades .etc which are especially suitable for cutting woven materials
  • Applicable industries: Leather, Textiles, Fabric, No-woven Fabric, Fur, Multi-layer, Carpet, Sporting Goods and other industries
Drag knife
Drag knife
  • By dragging and cutting, it is suitable for membrane materials, medical membranes and other industries to avoid vibration marks.
  • Applicable industries: membrane materials, medical industry and other industries
Worry free service
Three year warranty
Three year warranty
Return without reason for seven days
Return without reason for seven days
Lifetime free upgrade
Lifetime free upgrade
Lifelong free service
Lifelong free service
