How to use digital CNC textile cutting machine to cut various special-shaped patterns

Industry perspective

  There are many kinds of textile fabrics, which are not only used in common clothing, but also in other industries, such as carpets, tablecloths, sofa covers and other places, so there will be many and various patterns, which can be scanned by AOL digital cameras. , the software automatically recognizes the material pattern and generates file data, which is input into your software. If there is no pattern, you can import the size of the pattern to be cut into the software, and the system can perform intelligent layout according to the pattern, and the cutting can be completed with one key.

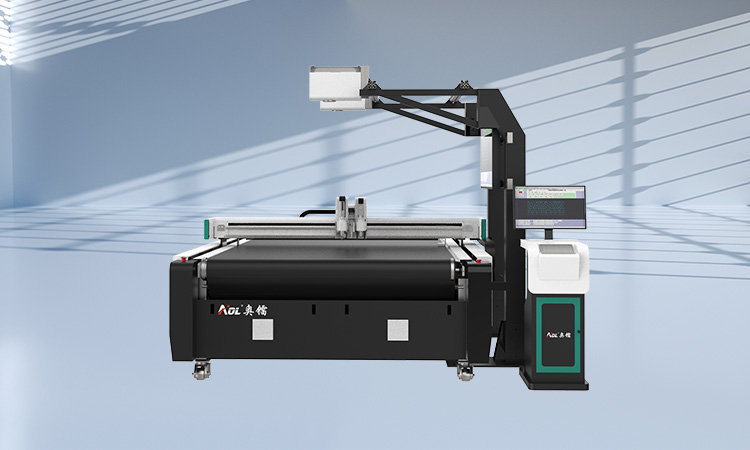

Textile cutting machine

Features of AOL CNC Textile Cutting Machine:

1. Has a complete camera positioning system, supports ● or ten marks, etc., to improve work efficiency

2. It has a simple automatic tool setting system, and adopts fiber laser sensor to accurately detect the tool, which greatly improves the tool setting efficiency

3. Using blade cutting, no need to make molds, intelligent cutting enters the era of digital processing

4. Breakpoint recovery function, when the device is working, if it is suddenly interrupted due to external reasons, after the work is resumed, the sampling can be completed from the interrupted part

  In the past few years, clothing and textile fabrics were all cut by laser cutting machines. Later, due to environmental protection reasons, some manufacturers gradually turned to blade cutting machines. Now the cutting of special-shaped pattern fabrics can be achieved automatically through the fabric cutting machine. Single-layer cutting, top The camera can automatically generate the line drawing.

  The automatic threshold value of the top camera of AOL CNC fabric cutting machine does not need repeated debugging, reduces the dependence on manual work, and is about 3 times more efficient than manual mode. Equipped with a feeding rack with a load capacity of 75KG-150KG, the fabric material has no tensile deformation, and can also reduce the possibility of material wrinkling.

  The top camera is easy to operate, and only one key is needed to automatically take pictures. The cutting process is to place the material on the automatic feeding rack, and then the top camera takes a picture and extracts the outline to cut the material with high precision.

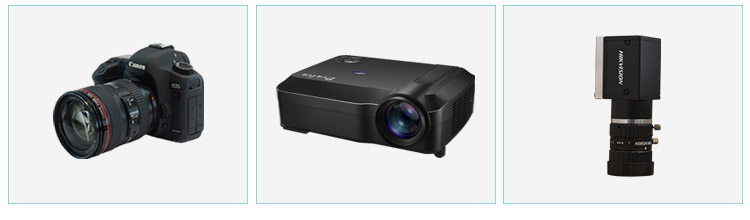

Camera Projection Accessories

  The CNC fabric cutting machine can be equipped with different tools for cutting fabric materials of different thicknesses. For fabrics with a thickness of less than 10mm, a circular knife can be selected for cutting, and materials with a larger thickness can be cut with a vibrating knife. There are all kinds of clothing, diving suits, mouse pads, sofa covers, tablecloths and other industries.

Advantages of AOL CNC Textile Cutting Machine:

1. High efficiency and simple operation. Ordinary workers can work skillfully within 2 hours

2. High precision, high-quality linear guides are used, and the accuracy error is ±0.1mm.

3. Infrared induction system, 360° surround safety to ensure operator safety

4. The sturdy aluminum honeycomb platform has good suction effect, ensuring that the platform is flat and not deformed after long-term use.

5. Precise knife setting system, easy to operate, can accurately control the depth of the knife, and prolong the use time of the mat.

  Through the above understanding, do you still think that the cropping problem you are facing now is difficult to solve? If you have learned a lot about the cutting machine through the above, remember to bookmark the website. If you want to know more about the fabric cutting machine or want to inquire about the price of the equipment, please click here to contact us, we will be within 24 hours. Detailed answer for you! In the meantime, you can also take a look at our related material videos on YouTube (click the YouTube link) to learn more about us!
